Modular Steel Case – Kit 1

(1 customer review)

$75.00

SKU: CASE1 Category:

August 2023 Update

I have a new all metal ‘open’ case design that takes things to the next level!

  • All new modular design. Plates and Base can be stacked and can accomodate as many Pi/MisterFPGA boards as needed.
  • 3 Unit Base includes single 80mm quiet fan for cooling. Taller units can be custom ordered (6 or even 9 unit!)
  • Plates currently drilled for MisterFPGA DE-10Nano or Raspberry Pi with 3mm hole size
  • All brass hexagonal spacers provided with M3 steel screws (available in 10mm, 12mm, 15mm, 25mm, 40mm, 50mm)



  • Plasma CNC cut all metal design
  • Epoxy spray painted in matte black
  • All holes precision marked/drilled

Kit 1 comes with:

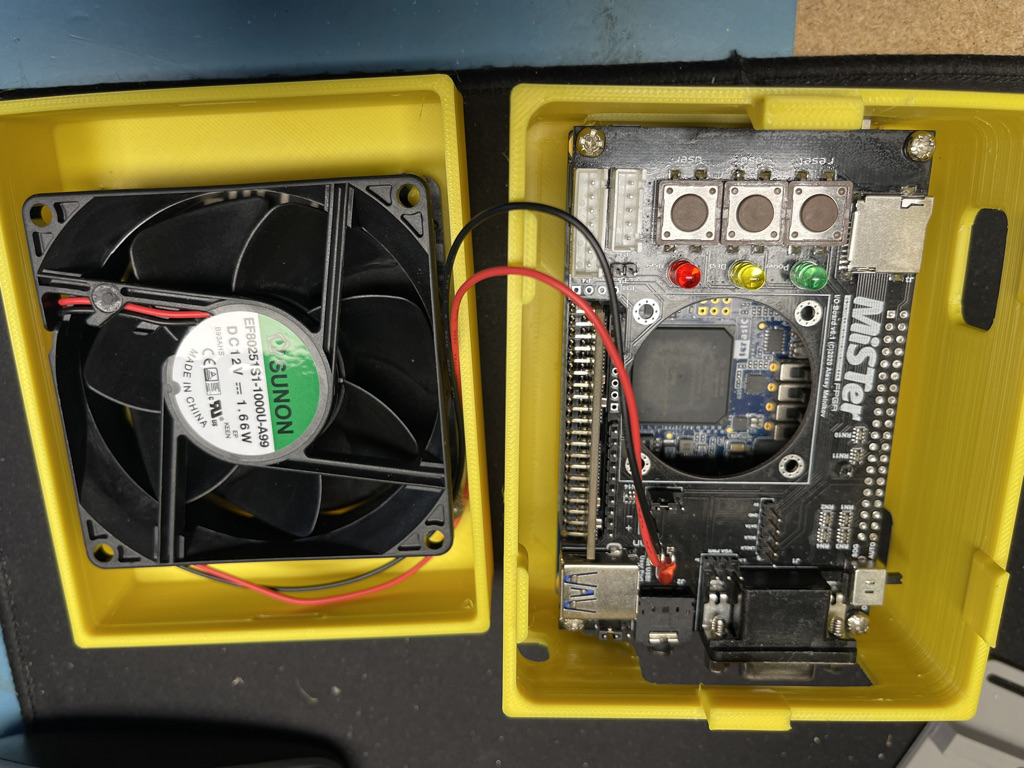

  • 3Unit 1Fan Base including 80mm Sunon quality fan (2 pin header connection for Pi/Mister/AnalogIO)
  • 1 System Plate for Raspberry Pi 3B/4B and MisterFPGA DE10-Nano
  • 4 x 10mm Brass Spacers (Base – Plate)
  • 4 x 3mm Metal mounting feet (you can replace with your own choice)
  • M3 mounting screws (recommend adopting 3mm standard hole size by drilling out your Pi boards from 2.5mm to 3mm)
Weight 0.1 kg
Dimensions 15 × 12 × 7 cm

1 review for Modular Steel Case – Kit 1

  1. James Fares (verified owner)

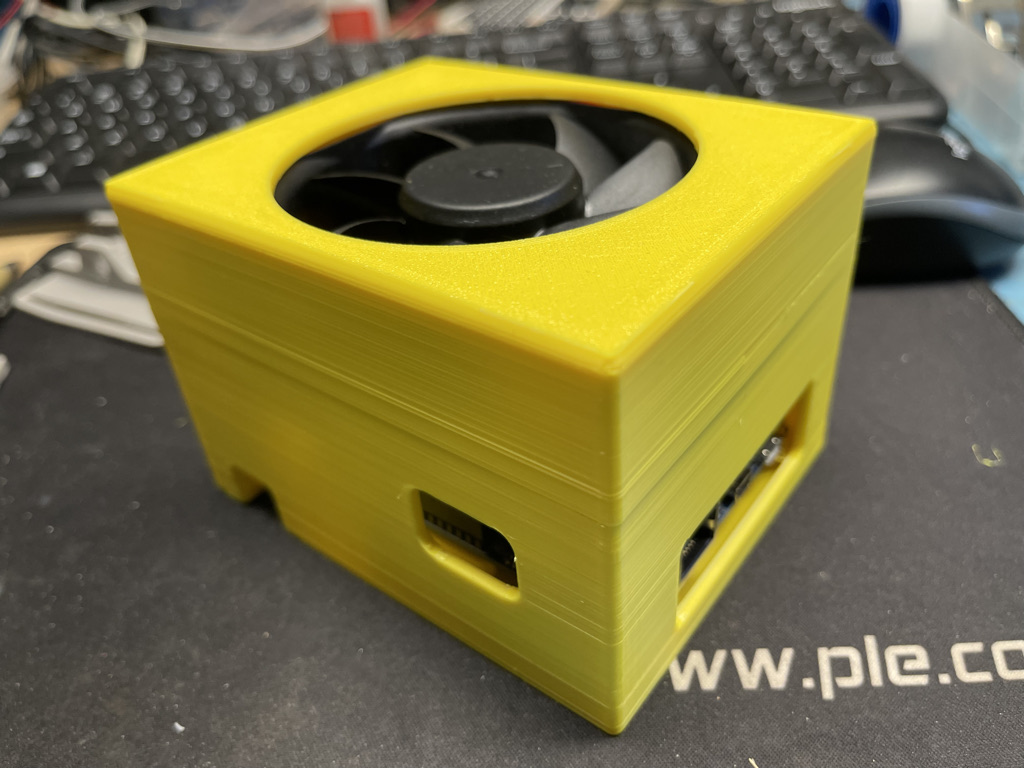

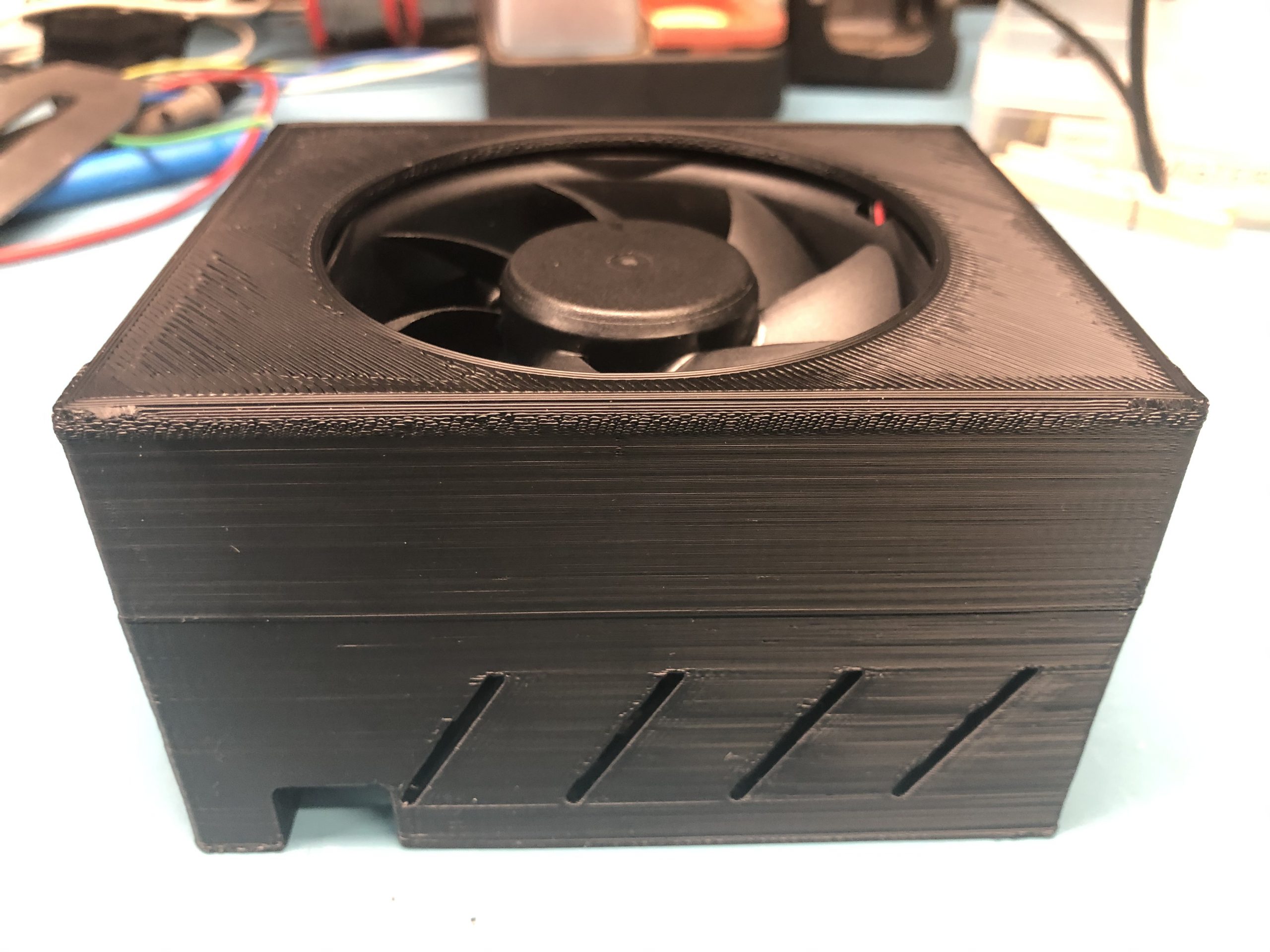

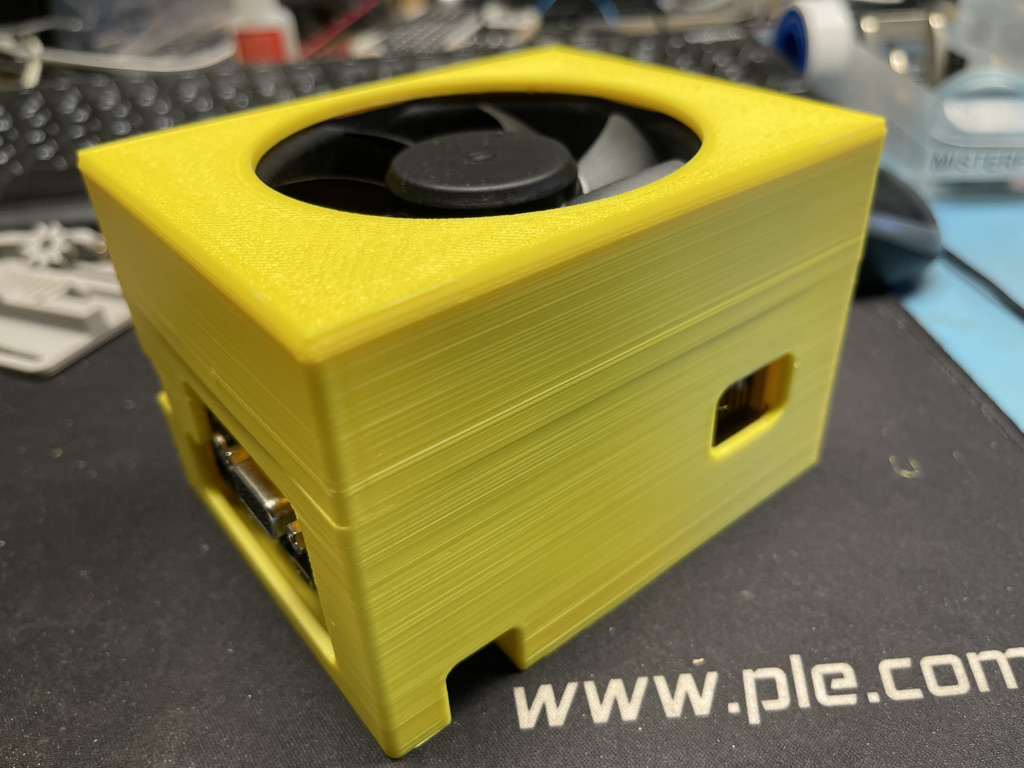

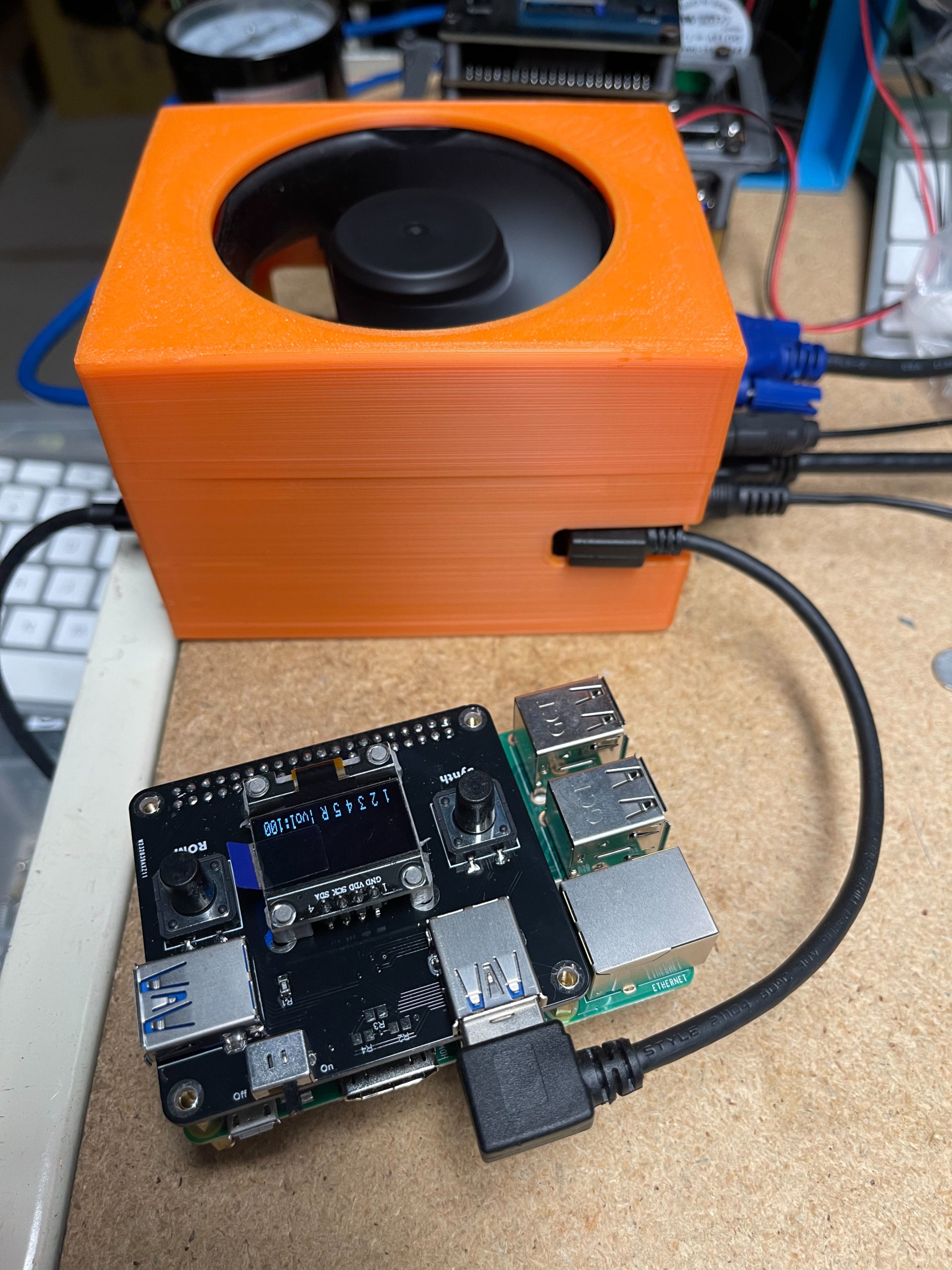

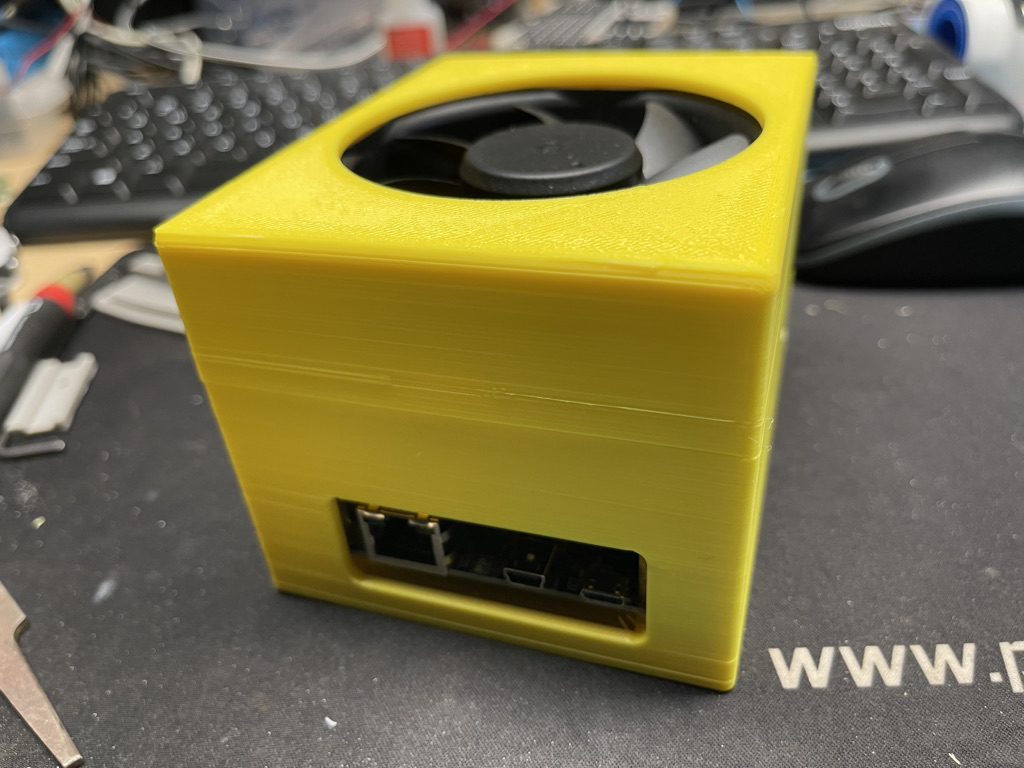

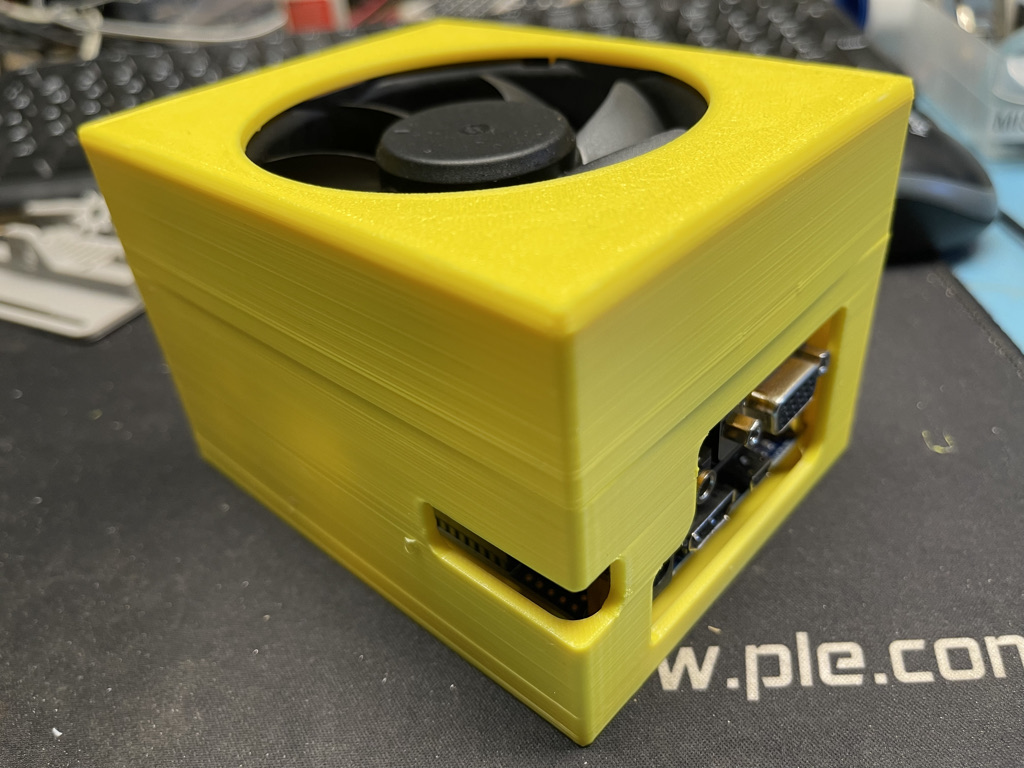

    Great Case and great support. very robust 3d print and stylish with room to grow the mister setup
